INSTRUMENT INTRODUCTION

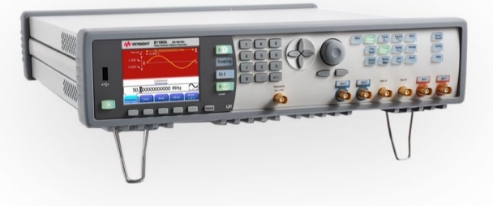

Brand: Keysight

Model: 81160A

Manufacturer: Keysight

Origin: USA

Key Specifications and Technical Data:

Generates 330 MHz pulses and 500 MHz function/arbitrary waveforms at 2.5 GSa/s sampling rate and 14-bit vertical resolution; Selectable crest factor for Gaussian white noise lets engineers determine how much distortion to apply to the device during stress testing to meet the requirements of various serial bus standards; Hairless timing parameter change feature lets engineers change the frequency without dropping the line or hairs. Frequency can be changed without dropping the line or burr, and continuous operation can be achieved without having to reboot or reset the device under test; The arbitrary Bit Pattern feature shows the capacitive loading of a channel using a simple pattern setting. Designs can be stress-tested without the need for complex measurement setups. 330 MHz Pulse, 500 MHz Sine, 660 Mbit Patterns

Key Features and Functions:

The Keysight 81160A Pulse Function Arbitrary Noise Generator is a high-precision pulse generator with a wealth of signal generation, modulation, and distortion features to perform thorough stress testing of your devices!

Placement:

Room 1205, Zhizhen Building, Shenzhen University South Campus, State Key Laboratory of Radio Frequency Heterogeneous Integration
