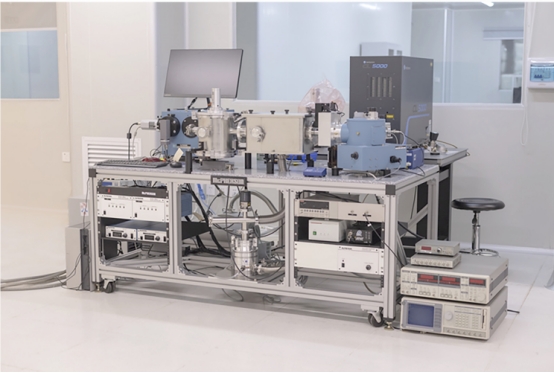

INSTRUMENT INTRODUCTION

Brand: MCPHERSON

Model: Model 234/302

Main specifications and technical parameters:

The equipment light source for the deuterium lamp, power greater than 150W, spectral range of 120-600nm, laser-driven plasma light source wavelength range of 170nm-2000nm, ARF excimer laser wavelength of 193nm, excitation monochromator in the range of 120-1100nm wavelength, the resolution is better than 0.2nm, the emission monochromator in the range of 200-1000nm, resolution is better than 0.2nm. The resolution is better than 0.2nm, dual light source optical path switching device, can realize the switching of standard detectors under the vacuum environment; Vacuum UV to visible variable angle reflectance spectrometry with scintillator PMT, the spectral range of 120nm-900nm, NIST or NIM traceable standard detectors, the spectral range of 120nm-1100nm, the emission spectrometer, the spectral separation of the dual grating Spectral range 170nm-1000nm; spectral resolution better than 0.2nm

Placement:

Optoelectronics Center, Shenzhen University, South Campus of SZU, the first phase of the Basic Experiment Building, negative 1 floor
