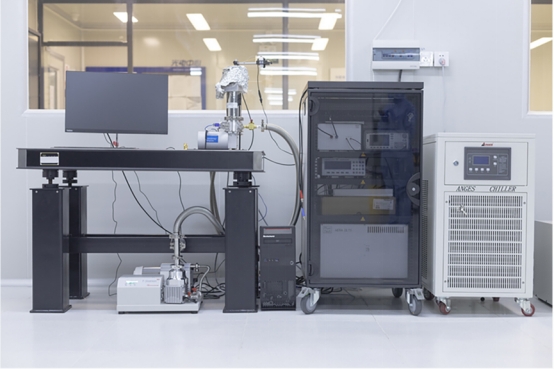

INSTRUMENT INTRODUCTION

Brand: Phystech

Model: FT1030

Main specifications and technical parameters:

Voltage range: +/-20V, voltage resolution: +/-0.3V; Expanded voltage range: +/-100V, voltage resolution: +/-1.5V; Maximum pulse width is greater than 1000s, capacitance measurement of HF signals covering 1MHz, capacitance compensation covers 1pF-3300Pff; HF signals include 15mV, 30mV, 50mV, 100mV; capacitance test range covers 2pF, 20pF, 200pF, 2000pF; capacitance test range covers 2pF, 20pF, 200pF, 2000pF. Capacitance test range covers 2pF, 20pF, 200pF, 2000pF (manual or automatic); Capacitance test sensitivity up to 0.01fF.

Main functions and features:

1. interfacial state energy distribution; 2. interfacial state energy level and in vivo deep energy level; 3. captured interface and energy and temperature relationship

Placement:

Optoelectronics Center, Shenzhen University, South Campus of SZU, the first phase of the Basic Experiment Building, negative 1 floor
